DGAA056, DGAA070, DGAA077 REPAIR PARTS LIST

DGAA056BDTA, DGAA070BDTA, DGAA077BDTA

DGAH056BBSA, DHAH077BBSA

DGPA056ABTA, DGPA070ABTA, DGPA077ABTA

DGPH056ABTA, DGPH070ABTA, DGPH077ABTA

REPAIR PARTS

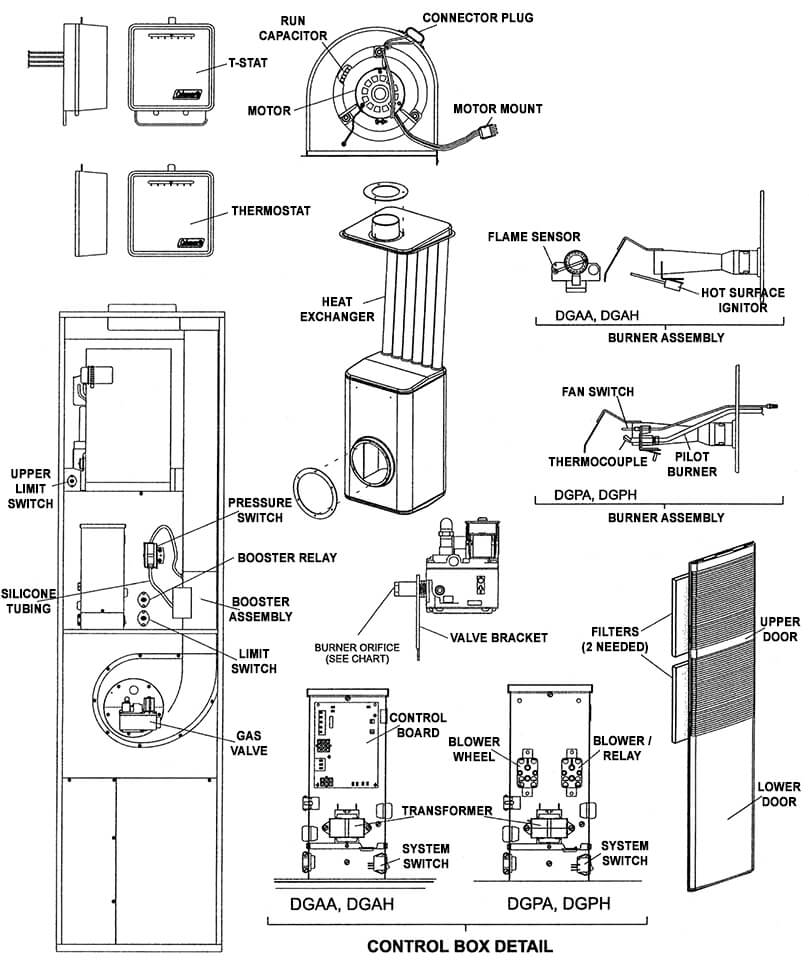

Click on the red circles in the diagram below to find your parts.

DGAA REPAIR PARTS LIST

DESCRIPTION

DGAA056BDTA

DGAA070BDTA

DGAA077BDTA

DGAA090BDTA

CAPITOL #

Pressure Switch

S1-32435972000

S1-32435972000

S1-32435972000

S1-32435972000

0702541003000

Silicon Tubing (2 req)

S1-02812499000

S1-02812499000

S1-02812499000

S1-02812499000

0702811957000

Upper Limit Switch

S1-02535358000

S1-02535358000

S1-02535358000

S1-02535358000

070253538000

Booster Assembly

S1-37319801820

S1-37319801820

S1-37319801820

S1-37319801820

0737319801820

Control Board

S1-03101932002

S1-03101932002

S1-03101932002

S1-03101932002

070310910000

Gas Valve

S1-7990-328P

S1-7990-328P

S1-7990-328P

7990-328P

0702543267000

Valve Bracket

S1-07319801064

S1-07319801064

S1-07319801064

S1-07319801064

0737319801063

Thermostat (H&C)











Heat Exchanger

S1-37319804651

S1-37323792001

S1-37323792002



0737319804651

Heat Exchanger







S1-37323792003

0737319806650

Flame Sensor

S1-02535354000

S1-02535354000

S1-02535354000

S1-02535354000

0702535354000

System Limit Switch

S1-02535380000

S1-02535380000

S1-02535381000

S1-02535381000

077681.3301

Burner Assembly

S1-37319801403

S1-37319801403

S1-37319801403

S1-37319801403

0737319801403

Hot Surface Ignitor

S1-02541021000

S1-02541021000

S1-02541021000

S1-02541021000

02541021000

Filter (2 req.)

S1-1214-2511

S1-1214-2511

S1-1214-2511

S1-1214-2511

071214.2511

Upper Door Panel











Lower Door Panel (Tall)

7900-7611

7900-7611

7900-7611

7900-7611

087900.7611

Lower Door Panel (Short)

7900-7671

7900-7671

7900-7671

7900-7671



Motor (old)

S1-1468-220P

S1-1468-220P

S1-1468-220P

S1-1468-220P

1468.220P

Motor (new)

S1-02435603000

S1-02435603000

S1-02435603000

S1-02435603000



Motor Mount Assembly

S1-37319806100

S1-37319806100

S1-37319806100

S1-37319806100

0737319806100

Connector Plug

S1-02521192000

S1-02521192000

S1-02521192000

S1-02521192000



Run Capacitor











Blower Wheel

S1-02619654003

S1-02619654003

S1-02619654003

S1-02619654003

0702619654703


DGAA, DGAH, DGPA & DGPH 056 070 077 REPAIR PARTS LIST

DESCRIPTION

DGAA056BDTA

DGAA070BDTA

DGAA077BDTA

DGAA090BDTA

CAPITOL #

Pressure Switch

S1-32435972000

S1-32435972000

S1-32435972000

S1-32435972000

0702541003000

Silicon Tubing (2 req)

S1-02812499000

S1-02812499000

S1-02812499000

S1-02812499000

0702811957000

Upper Limit Switch

S1-02535358000

S1-02535358000

S1-02535358000

S1-02535358000

070253538000

Booster Assembly

S1-37319801820

S1-37319801820

S1-37319801820

S1-37319801820

0737319801820

Control Board

S1-03101932002

S1-03101932002

S1-03101932002

S1-03101932002

070310910000

Gas Valve

S1-7990-328P

S1-7990-328P

S1-7990-328P

7990-328P

0702543267000

Valve Bracket

S1-07319801064

S1-07319801064

S1-07319801064

S1-07319801064

0737319801063

Thermostat (H&C)











Heat Exchanger

S1-37319804651

S1-37323792001

S1-37323792002



0737319804651

Heat Exchanger







S1-37323792003

0737319806650

Flame Sensor

S1-02535354000

S1-02535354000

S1-02535354000

S1-02535354000

0702535354000

System Limit Switch

S1-02535380000

S1-02535380000

S1-02535381000

S1-02535381000

077681.3301

Burner Assembly

S1-37319801403

S1-37319801403

S1-37319801403

S1-37319801403

0737319801403

Hot Surface Ignitor

S1-02541021000

S1-02541021000

S1-02541021000

S1-02541021000

02541021000

Filter (2 req.)

S1-1214-2511

S1-1214-2511

S1-1214-2511

S1-1214-2511

071214.2511

Upper Door Panel











Lower Door Panel (Tall)

7900-7611

7900-7611

7900-7611

7900-7611

087900.7611

Lower Door Panel (Short)

7900-7671

7900-7671

7900-7671

7900-7671



Motor (old)

S1-1468-220P

S1-1468-220P

S1-1468-220P

S1-1468-220P

1468.220P

Motor (new)

S1-02435603000

S1-02435603000

S1-02435603000

S1-02435603000



Motor Mount Assembly

S1-37319806100

S1-37319806100

S1-37319806100

S1-37319806100

0737319806100

Connector Plug

S1-02521192000

S1-02521192000

S1-02521192000

S1-02521192000



Run Capacitor











Blower Wheel

S1-02619654003

S1-02619654003

S1-02619654003

S1-02619654003

0702619654703
